Lead Hardness Tester Standard Model
$119.69
Out of stock
Item Number
CTLT1
Please call us (208) 263-6953 if you would like to place this item on back order.

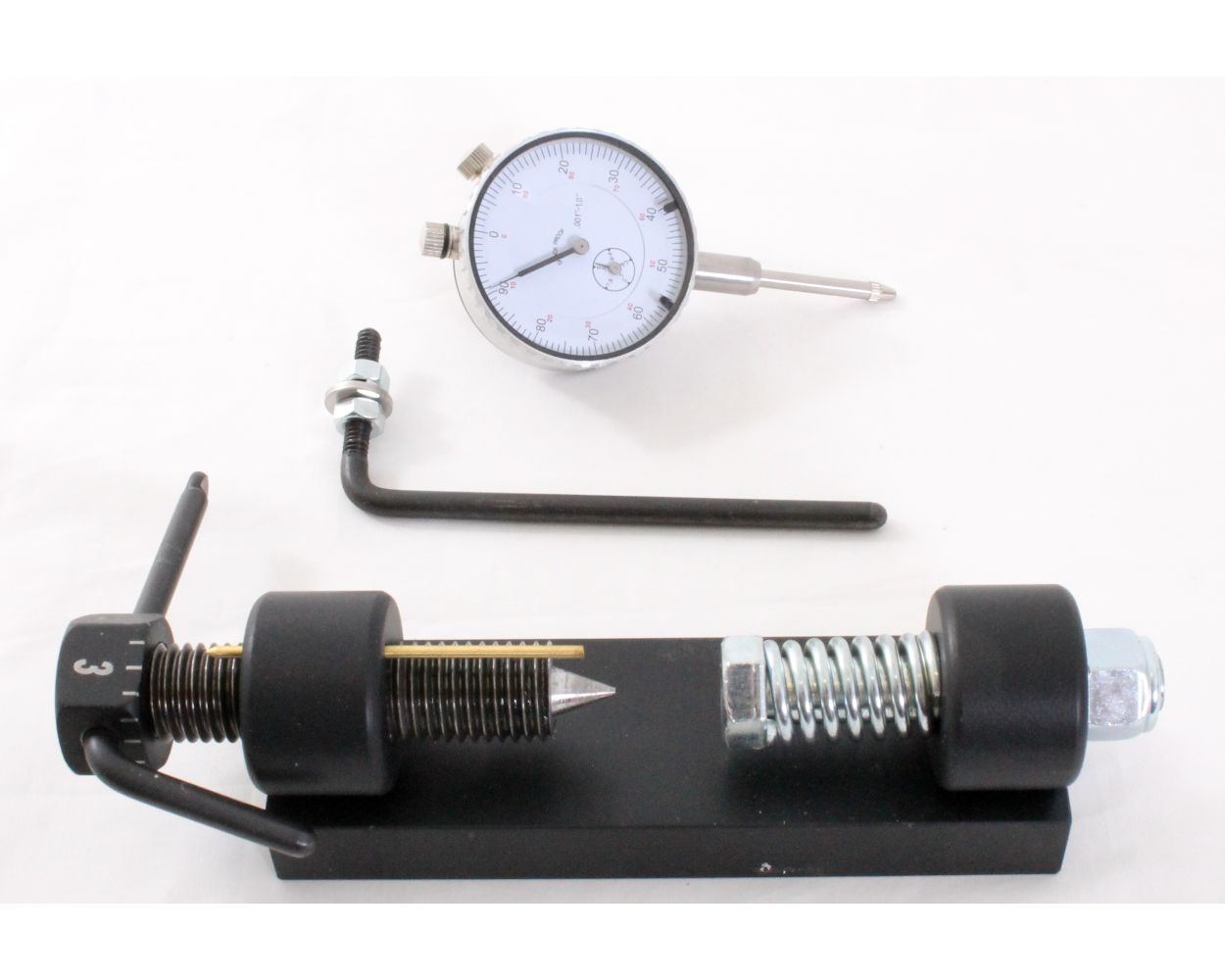

The Lead Hardness Tester Standard Model is one of the easiest to use lead testers on the market. Use for testing cast bullets and ingots. Features a large and easy to read dial indicator. A conversion chart for SAECO and Brinnell is included. Unit is all steel, weighs approximately 5 lbs, with a black oxide finish.
Testing an ingot. Install the dial indicator on the holding rod and center its plunger on the spring bolt head. Adjust this using the nuts and washers on the rod. When properly set up, the dial indicator plunger should be slightly compressed (1/4”), centered and in line with the bolt. The indicator will be at an angle for easier reading and less glare. Rotate the dial face to “O” (it may have a set screw on the side of the dial face that locks its movement). The small brass rod is the reference point for the screw markings. TESTING: Run the screw point until it just touches the sample. For a bullet, this should be centered and preferably on a flat (if there isn’t one, file a ¼” flat for a better test). After the point just touches the sample, note the EXACT pointer mark, rotate the screw EXACTLY ONE TURN, and read the indicator. You have just made a test and it probably took less time than reading this. NOTE: On pure lead, read the dial quickly as the spring is strong and the point will continue in changing the reading. This isn’t a problem on harder alloys. NOTE: IF you use exactly the same procedure each time your results will be consistent. Varying the “first touch” will cause the most errors. Concentrate on that first touch. On hard bullets, they can literally be held in place by that touch, BUT on pure lead just a hint of a touch is correct. On pure lead any touch is penetration and it will give you high readings. SUGGESTION: For new users, run several tests on the same bullets until you get the “feel” for it. This should be fairly easy and when you start seeing the same reading, within a point or two, you are ready to start testing. BHN: If you want to read Brinell directly, simply mark the dial face with a “wipe off” felt pen. POINTS to consider: If you are trying to duplicate some old bullets, have they age hardened (or softened)?? Ingots will not read exactly the same as bullets. I have had the best luck on ingots by sectioning them and testing along the edge. Ingot surfaces are usually not smooth and throw off readings as well as the fact that they cool slower and density can be different due to varying shrinkage. Testing the same bullet will only work if you file off the old mark and this can still throw the reading off. Hammering a bullet to retest it will NOT work. The tester point is NOT hardened, DO NOT test anything but lead alloys.
Testing an ingot. Install the dial indicator on the holding rod and center its plunger on the spring bolt head. Adjust this using the nuts and washers on the rod. When properly set up, the dial indicator plunger should be slightly compressed (1/4”), centered and in line with the bolt. The indicator will be at an angle for easier reading and less glare. Rotate the dial face to “O” (it may have a set screw on the side of the dial face that locks its movement). The small brass rod is the reference point for the screw markings. TESTING: Run the screw point until it just touches the sample. For a bullet, this should be centered and preferably on a flat (if there isn’t one, file a ¼” flat for a better test). After the point just touches the sample, note the EXACT pointer mark, rotate the screw EXACTLY ONE TURN, and read the indicator. You have just made a test and it probably took less time than reading this. NOTE: On pure lead, read the dial quickly as the spring is strong and the point will continue in changing the reading. This isn’t a problem on harder alloys. NOTE: IF you use exactly the same procedure each time your results will be consistent. Varying the “first touch” will cause the most errors. Concentrate on that first touch. On hard bullets, they can literally be held in place by that touch, BUT on pure lead just a hint of a touch is correct. On pure lead any touch is penetration and it will give you high readings. SUGGESTION: For new users, run several tests on the same bullets until you get the “feel” for it. This should be fairly easy and when you start seeing the same reading, within a point or two, you are ready to start testing. BHN: If you want to read Brinell directly, simply mark the dial face with a “wipe off” felt pen. POINTS to consider: If you are trying to duplicate some old bullets, have they age hardened (or softened)?? Ingots will not read exactly the same as bullets. I have had the best luck on ingots by sectioning them and testing along the edge. Ingot surfaces are usually not smooth and throw off readings as well as the fact that they cool slower and density can be different due to varying shrinkage. Testing the same bullet will only work if you file off the old mark and this can still throw the reading off. Hammering a bullet to retest it will NOT work. The tester point is NOT hardened, DO NOT test anything but lead alloys.
